Accessories & Options



New Construction Accessories

Wall Sleeves
The Simon-Aire wall sleeves are available in a full range of wall depths andWall Sleeve styles (Masonry and Panel Wall) all built to suite your building design and requirements.

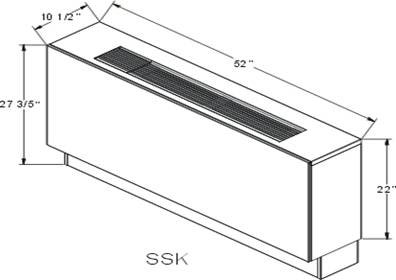

Room Enclosures
The Simon-Aire room enclosures are manufactured in three dimensional standards. 48" inch wide, the 52" wide standard as well as 54" oversized.
The enclosures are constructed of furniture grade sheet metal coated with electrostatic deposition bonded Enamel. Includes discharge grill and control panel access doors.

Room Enclosure

SSK



New Construction and Accessory Components



Hydronic Heat Assemblies
Call Factory for dimensions and availability.

Hydronic Heat Assembly

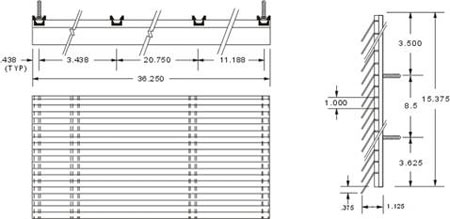

Outside Louvers
Available in many finishes, contact factory.

Outside Louvers

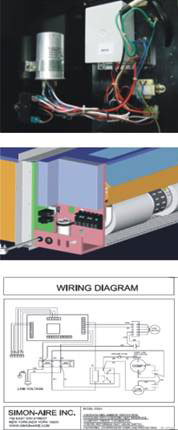

Remote Wall Thermostat Options
The Simon-Aire chassis can be ordered from the factory with a wide range of remote wall thermostat controls. Consult the factory for the systems integration and  controls to suite your requirements.

Remote Wall Thermostat OptionsGeneral description
Flush mount thermostat, fits almost all electrical boxes and also can be used with IR remote.

Applications
The FMT 24 series of thermostats are ideal for residential, office buildings, etc.

Features

  • 24 VAC - Input
  • Cool, Heat pump, Electric heat,
    Oil, Gas
  • Temperature Limits
  • Returns to last setting after power outage.
  • Large display - ambient & set temperature (LCD).
  • Unoccupied function -
    leaving your home?
    Just press a button and
    economy sets will take control!!!
  • Easy to install - quick connector.

SpecificationsThermostat

  • Product:    FMT-24 Series
  • Range:    45o to 88o  F.
  • Differential:   1.2o
  • Load Rating:   2 Amps
  • Input:  24 V AC -50/60 hertz.
  • Wiring Connections:   Screw type terminals
  • Material:     PC/ABS
  • Flammability:   UL 94 V-0
  • Dimensions:    3.25" x 5.65" x 1.3"
  • Weight Net:     145 g.

Thermostat
